Croplands Broadacre trailing sprayers are purpose-built to handle Australia’s demanding landscapes. Featuring premium tanks, sturdy booms, and rugged chassis, they’re supported by top-notch technical expertise.
Developed with cutting-edge technology, these sprayers combine high durability with user-friendly operation. They set the benchmark for reliability and efficiency, giving growers confidence in their performance year after year.

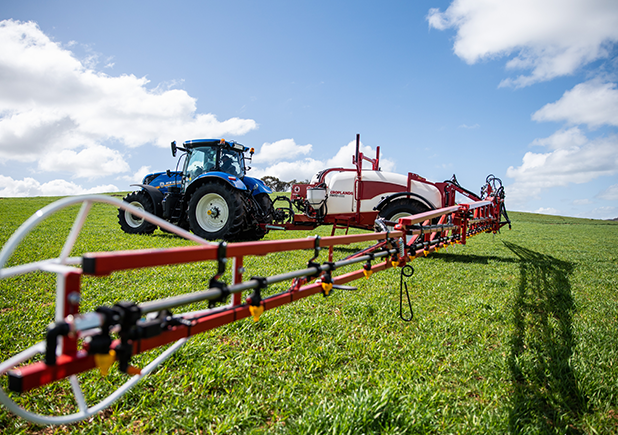

Pinto trailed sprayers embody Croplands' design philosophy with their robust construction and generous dimensions, delivering unmatched durability and exceptional year-after-year performance. Designed for simplicity and functionality, these sprayers feature fully hydraulic boom options ranging from 16 to 24 meters, complete with hydraulic parallelogram boom lift, fully adjustable boom breakaways, three-section boom control, and a self-levelling device for improved application precision.
Additionally, Pinto sprayers come with heavy-duty, UV- and chemical-resistant polyethylene tanks available in 3000- and 4000-litre capacities, all supported by a highly durable chassis.
| Feature | Pinto 3000 | Pinto 4000 |
|---|---|---|
| Tanks | High-quality 3000-litre calibrated polyethylene tank featuring a quick-release hinged lid, basket strainer, top/bottom fill, hydraulic Venturi agitation, anti-vortex suction, and drain outlet. | High-quality 4000-litre calibrated polyethylene tank designed to ensure clean flushing and even weight distribution. |
| Chassis | Rugged fabricated chassis built for maximum durability with a heavy-duty single axle (18.4 x 30” single wheel tyres), featuring a height adjustable hitch and swivel eye drawbar for optimized towing balance, along with standard mudguards and mudflaps to reduce dust and mud-splash. | |
| Booms | Epoxy-powder coated booms available in 16, 18, 21, and 24 metres. Features a fully hydraulic system including hydraulic fold, hydraulic accumulator boom suspension, hydraulic parallelogram boom lift, fully adjustable boom breakaways with 90° self-returning ends, three-section boom control, and a self-levelling device. Fitted with SprayWise-endorsed AirMix® air-induction nozzles for excellent spray coverage and reduced drift. | Epoxy-powder coated booms available in 18, 21, and 24 metres. Offers the same fully hydraulic system with hydraulic fold, hydraulic accumulator boom suspension, hydraulic parallelogram boom lift, fully adjustable boom breakaways with 90° self-returning ends, three-section boom control, and a self-levelling device. Equipped with SprayWise-endorsed AirMix® air-induction nozzles for superior spray coverage and reduced drift. |
| Electric Controls | In-cab electric controller with master switch, 3-way boom switches, and pressure adjustment. Electric motorised valves are easily accessible. Compatible with ISOBUS, Trimble, Topcon, and Greenstar systems, with an optional Trimble Ready with Field IQ module available. | |
| Additional Features | AR160 PTO-driven diaphragm pump (160 L/min), 275-litre flushing tank for in-field rinsing, 15-litre fresh water hand wash tank, integrated chemical suction probe, and integrated GPS options for precise application. | |

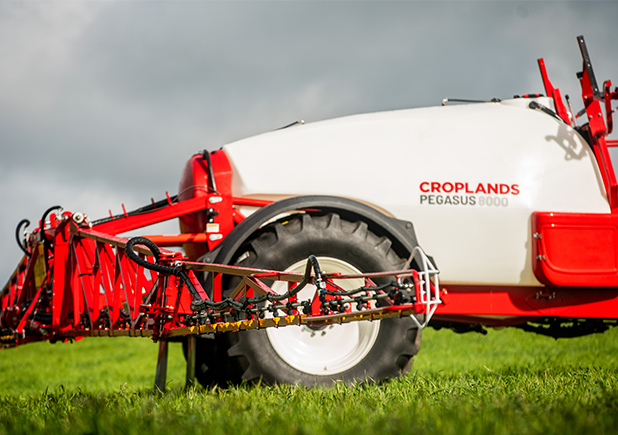

The Croplands Pegasus range is celebrated for its outstanding productivity and ease of use. This exceptional performance is delivered to large-scale farming through its flagship 8000-litre model.
Experience a smooth ride behind the tractor with the Pegasus 8000’s virtually unbreakable, heavy-duty chassis. Its self-leveling boom, hydraulic accumulator suspension, and air-ride axle system work together to deliver exceptional boom stability for precise droplet application. Additionally, the tank's deeper placement lowers the centre of gravity, ensuring a stable ride across varied terrains.
| Feature | Pegasus 5000 | Pegasus 6000 | Pegasus 7000 | Pegasus 8000 |
|---|---|---|---|---|
| Tank Capacity | 5000 litres | 6000 litres | 7000 litres | 8000 litres |
| Chassis | Virtually unbreakable, super heavy-duty chassis for a smooth ride | |||
| Boom | Self-leveling boom for precise droplet application | |||
| Suspension | Hydraulic accumulator suspension with an air-ride axle system | |||
| Tank Design | Deep-set tank lowers the centre of gravity for enhanced stability | |||
| Optional Extras | ||||
|
||||
Welcome to our Trailed Sprayer Selection Guide. Use the comparison table below to easily evaluate your options and find the best sprayer to meet your needs.
| Feature | PEGASUS 8000 | PEGASUS 7000 | PEGASUS 6000 |
|---|---|---|---|
| DIMENSIONS (METRES) | W 2.6 x L 8.7 x H 3.9 (30 metre) | NA – only fitted with 33 or 36 metre | W 2.6 x L 8.4 x H 3.7 (30 metre) |
| DIMENSIONS WHEN 33 OR 36 METRE FITTED (METRES) | W 3.5 x L 8.7 x H 3.9 (36 metre) | W 3.75 x L 9.35 x H 4.05 (36 metre) | W 3.5 x L 8.4 x H 3.5 (36 metre) |
| WEIGHT (DRY APPROX) | 6,900 kg (36 metre) | N/A | 4,800 kg (36 metre) |
| TANK SIZES | 8,000 litre | 7,000 litre | 6,000 litre |
| TANK VOLUME INDICATOR | Calibrated tube | Calibrated tank + ARAG | Calibrated tube |
| AGITATION | Dual Superflo + sparge-tube | Dual Superflo agitation + bypass | Dual Superflo agitation + bypass |
| DRAINAGE | 2” drain valve | 2" drain valve | 2” drain valve |
| FLUSHING TANK | 700 litre | 1,500 litre | 470 litre |
| TANK RINSE SYSTEM | Dual rotating flushing nozzle | Dual rotating flushing nozzle | Rotating flushing nozzle |
| FILLING (STANDARD) | 2” male Camlock comes with non-return valve and filter | 2” male Camlock comes with non-return valve and filter | 2” male Camlock comes with non-return valve and filter |
| FILLING FLOWMETER (OPTIONAL) | 2” ARAG Wolf | N/A | 2” ARAG Wolf |
| HAND WASH TANK | 35 litre | 20 litre | 20 litre |
| HITCH | Height adjustable comes with air-ride suspension | Height adjustable comes with air-ride suspension | Height adjustable comes with swivel eye and safety chain |
| JACK STAND | Heavy duty hydraulic retractable for clearance | Heavy duty retractable for high clearance | Heavy duty retractable for high clearance |
| AXLE (ADJ. 3 METRE STANDARD ON 33–36 METRE MODELS) | 2.5 metre and 3 metre adjustable kit | 3 metre fixed with air ride suspension | 2.2 metre (optional 3 metre kit) and 3 metre adjustable kit |
| AXLE SUSPENSION | Load sensing air bag type standard | Load sensing air bag type standard | Load sensing air bag type standard |
| AIR SYSTEM (IF FITTED) | 12 volt electric system comes with reservoir | 12 volt electric system comes with reservoir | Direct drive high capacity system comes with reservoir |
| MUDGUARDS (OPTIONAL) | Full width ½ wheel type | Full width ½ wheel type (standard) | Full width ½ wheel type |
| MUDFLAPS (OPTIONAL) | Croplands branded flex type | Croplands branded flex type (standard) | Croplands branded flex type |
| UNDER AXLE CLEARANCE | 690mm | 725mm | 720mm |
| TYRES | 710/70R x 42” | 710/70R x 42” | 20.8 x 42” |
| AXLE RATING | 15,500 kg @ 40 km/h | 16,250 kg @ 25 km/h | 14,000 kg @ 25 km/h |
| PUMP (AR POSITIVE DISPLACEMENT DIAPHRAGM TYPE) | AR250 | ForceField 9316C3U-M10 | AR185 LFP (optional AR250) |
| PUMP DRIVE (PTO STANDARD) | Hydraulic drive standard (550rpm max) | N/A | Hydraulic drive (optional) (550rpm max) |
| FILTRATION | 5 point filtration | 5 point filtration | 5 point filtration |
| BOOM SHUTOFF VALVES | ARAG motorised 5 section (optional 7–9 section) | ARAG motorised 5 section (optional 7–9 section) | ARAG motorised 5 section (optional 7 section) |
| CONTROLLER | BA7000 (optional Bravo 400S) | BA7000 | Bravo 180S (optional Bravo 400S) |
| SYSTEM OPERATION/WORK STATION | Compact rotary selector-valve system | Colour-coded rotary selector-valve system | Compact rotary selector-valve system |
| BOOM RANGE | 33–36 metre | 33–36 metre | 30–36 metre |
| 33–36 METRE BOOM | Heavy duty spring loaded yaw control | Heavy duty spring loaded yaw control | Heavy duty spring loaded yaw control |
| BOOM SUSPENSION | Nitrogen accumulator type | Nitrogen accumulator type | Nitrogen accumulator type |
| HYDRAULIC CONTROLS | Direct remote elec/hydraulic (in-cab) | Direct remote elec/hydraulic (in-cab) | Direct remote (elec/hydraulic for more than 2 functions) (in-cab) |
| HYDRAULIC WING LIFT | Optional | Optional | Optional |
| BOOM BREAKAWAYS | Self returning on outer wing | Self returning on outer wing | Self returning on outer wing |
| BOOM HEIGHT ADJUSTMENT | 2,000mm parallelogram type | 2,000mm parallelogram type | 2,000mm parallelogram type |
| BOOM PLUMBING (ON CENTRE) | Low friction stainless steel boom tube | Low friction stainless steel boom tube | Low friction stainless steel boom tube |
| BOOM FLUSHING TAPS | Fitted to all boom tube sections | Fitted to all boom tube sections | Fitted to all boom tube sections |
| NOZZLES | AirMix 110-02 standard | AirMix 110-02 standard | AirMix 110-02 standard |
| TWIN NOZZLE SWITCHING | Optional | Optional | Optional |
| FENCE LINE SPRAYER ASSEMBLY | Optional manual or electric control | Optional manual or electric | Optional manual or electric control |
| FILL SYSTEM | Optional hi-flow hydraulic drive fill pump | Remote fill pump required | Optional hi-flow hydraulic drive fill pump |
| CHEMICAL MIXING AND INDUCTION | 100 litre standard with drop leg | 60 litre standard with drop leg | 60 litre standard with drop leg |
| CHEMICAL INDUCTION PROBE COMES WITH DRUM RINSE | Optional | Optional | Optional |
| ENVIRODRUM TRANSFER SYSTEM | Optional | N/A | Optional |
