Dm300Afp - 3 Fp Male With Female 3 Npt Threads
Regular price$811.18
/
Tax included.
3" Full Port Male x 3" Female NPT Threads with Viton Seals
- Minimal fluid spillage
- Economical and easy to use
- Reduces risk of exposure to fluids
- Wide range of chemical resistance
- Cannot be uncoupled when the handles are in the fully open position
- Maximum pressure of 225 psi at 70° F

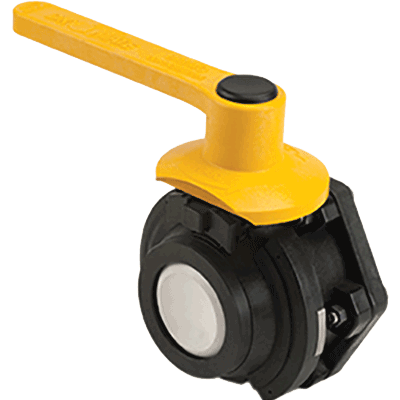

Banjo Dry-Mate® DM300 Series Dry Disconnect Coupling Fittings help prevent spillage and reduce risk of exposure to harmful fluids. The easy to use ball valve design allows an unrestricted path for fluid flow. The handles interlock making it easy to identify which handle opens or closes first. The clamps are made out of 316L stainless steel for maximum corrosion resistance. Series DM300 is made from a glass reinforced polypropylene for strength and chemical resistance. When properly installed and operated, the assembly will not accidentally separate while fluid is flowing preventing costly mishaps.
Item #DM300AFP
Addition information (Banjo technical data)
