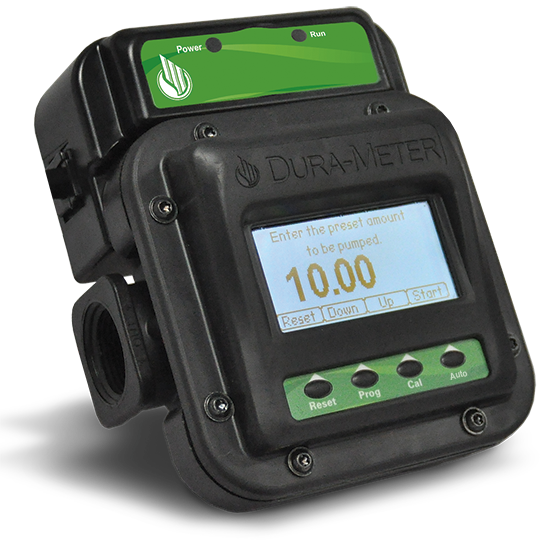

Auto Batch 1'' flow meter (operates 12v Valve)
The Auto-Batch Meter™ is made of impact resistant Lexan™ faceplate, so it holds up to the toughest treatment. It can also can withstand impacts common in the agricultural market and beyond. Made with 100% moisture-sealed circuitry, the meter is impervious to water intrusion.
This version of the Auto batch meter comes with wiring to operate a 3 wire 12 volt valve. We comanly use the Banjo EVX with this meter. Any vakve can be used that require 3 wires to operate. If the valve you would like to operate is only 2 wire use the Auro batch valve that will turn a pump on and off as it has only a power and earth - part number DPAB-12V (https://toowoombasprayshop.com.au/collections/chemical-handling/products/dpab-12v-dura-meter-w-auto-batch-12v-viton-flowmeter-only-operates-a-12-volt-pump)
This herbicide meter boasts a Quick List reference chart that allows the user to simply input a number that corresponds to the chemical viscosity and adjust up or down for more accuracy. Dura Products doubled the battery life with the addition of 4 “AAA” batteries, so you can stay in the field longer. It is over-molded with Santoprene and filled with gel, so the face-plate has shock resistance.
The Auto-Batch™ Meter uses an industry leading menu driven backlit display, so it is the easiest of all chemical meters on the market to use in all light conditions. Also, it is plumbed both for in-line and 90 degree applications, adding to its versatility. In addition to the rich features, a 2 Year Maintenance Program and warranty come standard. It is available with EPDM and Viton® seals.
How it Works
- Turn meter screen on by pressing any button, the “Power” light will be on if connected to power.
- Press Auto
- Set Amount
- Press Start (this puts meter into Auto-Batch mode, “Run” light will come on)
Features & Benefits
- Intuitive menu-driven backlit display
- Impact resistant Lexan™ faceplate
- Accuracy +/- 0.5% with manual field calibration
- Extended battery life with use of 4 “AAA” batteries
- Plumbed both for in-line and 90-degree applications
- Full port with industry standard manifold M100 flanges
- Works with non-conductive material
