Matrix 430 Features and Benefits
• Versatile GNSS guidance in a compact, portable package

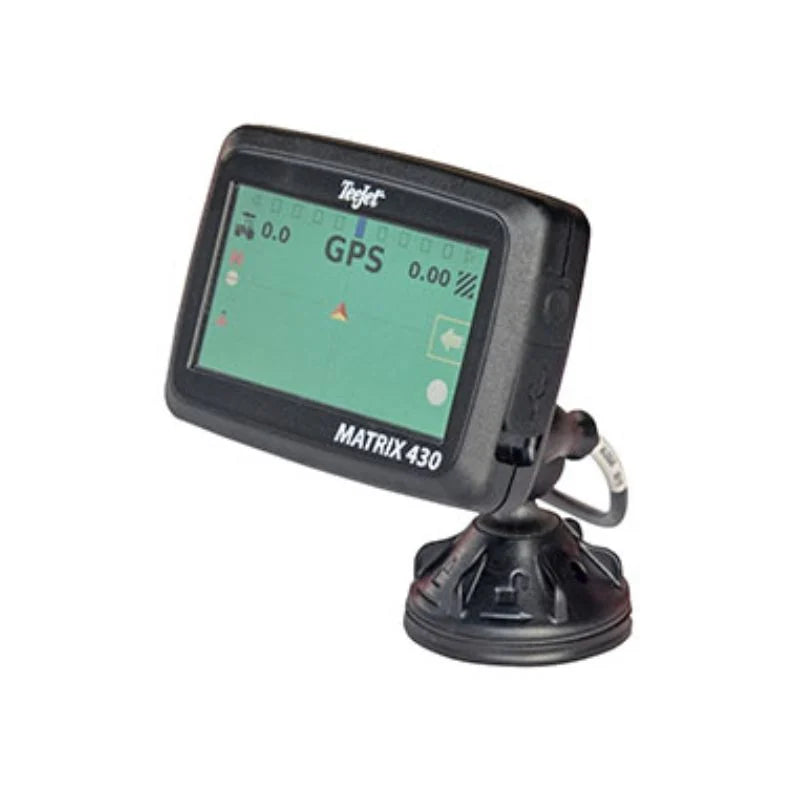

• High-contrast, full-color, 4.3 in / 110 mm graphic touchscreen display
provides superior visibility in bright light conditions
• Full time, on screen numeric display of cross-track error with user selectable
display of two additional parameters including: worked area, worked time and
ground speed
• High-quality, internal GPS/GLONASS engine with ClearPath technology that
enhances GNSS performance in areas where reception is poor or in regions
where SBAS differential correction is not readily available

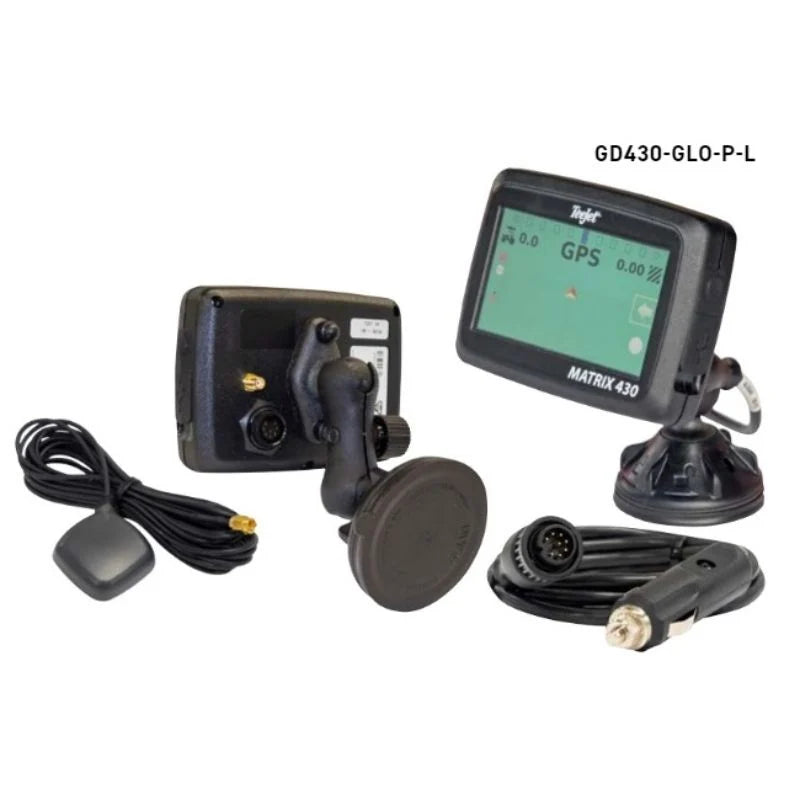

• Optional RXA-30 antenna provides improved reception and noise rejection
for situations where GNSS signals may be weak or partially obstructed
• Minimal setup needed before operating
• Boundary function allows for easy and precise measurement of field area

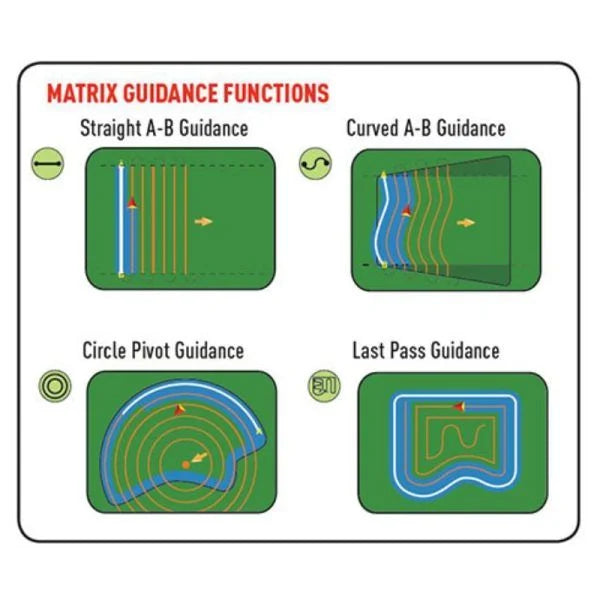

• Guidance modes include: Straight AB, Curved AB, Circle Pivot, Last
Pass, NextRow and No guidance
• Return-to-point feature allows operator to easily resume jobs or mark
field hazards
• Implement ON/OFF status can be manually activated on screen for single or
multiple sections or for single section only with status detect wire
• Applied alert provides operator with audible alarm when entering into previously applied areas
• Area counter measures and displays applied area throughout application
• Elapsed time counter measures amount of time spent on current job
• Simple reporting function provides coverage reports in .KML or .PDF format downloaded via USB port
